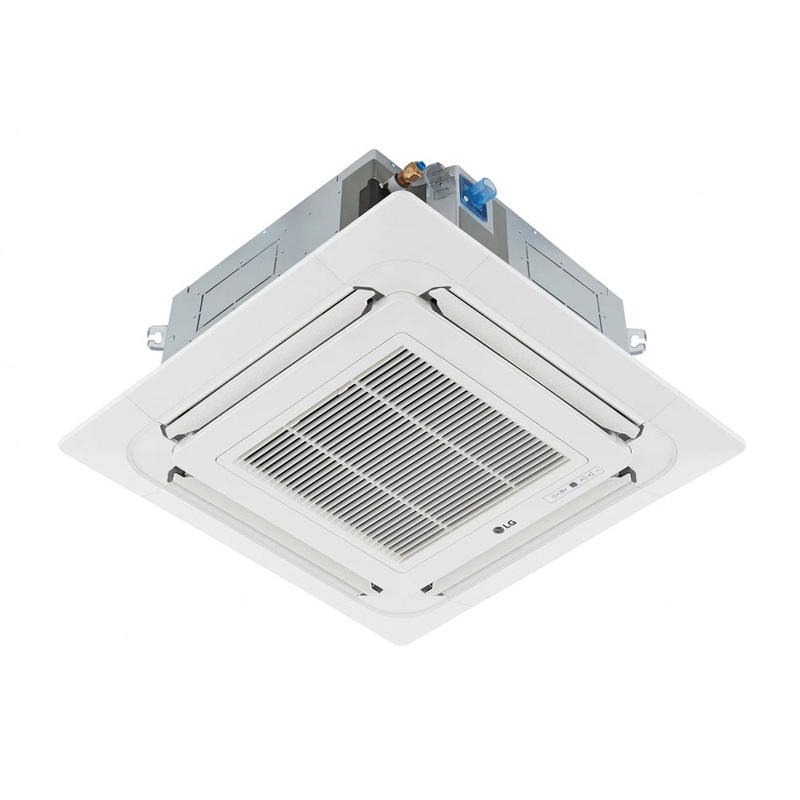

Ceiling Mounted Cassette

Maximizing the indoor aesthetics with comfortable environment

The New Cassette with
Air Purification

LG Cassette type indoor unit is equipped with the air purification function. It offers a solution to the problem of ultrafine dust that harms our bodies. This is the CAC*-certified, high-performance product that delivers clean, cool air to your large space.*Certification Air Conditioner, the Korea Air Cleaning Association strictly tests the air cleaning function of air conditioner products and certifies reliable products.

Air Purification Filter that Removes 99.9 of PM1.0

Powerful 4 step air purification filter removes up to 99.9 PM 1.0 ultrafine dust. In addition, it can be used semi-permanently, as it can be maintained by washing with water without a regular change of the filter.*The Air Purification Kit can be purchased as an option.

Provide Healthy Air in a Large Space

It is a larger air purification area than the cooling area. It can cover up to 147m to create a clean and healthy environment in various vertical spaces, such as kindergartens, schools, and shopping malls.

• Real-Time Air Quality Monitoring

  Real-time monitoring with a wireless or wired remote controller, panel LED lamp, and smart phone

• Convenient Attachment and Detachment

  Easier installation by attachment to the indoor unit body.

• Compact Design & Size

  New 4 Way Cassette panel adapted unibody shape. Its panel size is fit into the ceiling tile. Moreover, the indoor unit with slim and compact dimensions has reduced the restriction which enables successful installation in various spaces.

• Auto Elevation Grille

  Auto Elevation Grille allows easy filter cleaning with 4-point support structure, auto leveling and auto stop detection features and memory located at user’s level.

Independent Vane Control

The independent vane operation feature uses separate motors, making it possible to control all four vanes independently.

• 6-Step Vane Control

  There are 6 different steps to control air flow direction with 1 way cassette. It also has the vane for auto swing that moves between left and right sides for up to 120 degrees.

• Minimized Height

  The height of 1 Way Cassette is 132mm, making it the ideal solution for installation in limited space.

• Flexible Installation

  The access for inspection at 1 Way Cassette does not require additional ducted space making the installation environment uncomplicated.

Ceiling Mounted Cassette Line Up

Contact Us

Please contact us for more information on the product and we will get in touch with you soon.LEARN MORE

• PRINT

CLOSECAPACITY

• Cooling – kW3.6Cooling – kcal/h3,100
• Cooling – Btu/h12,300Heating – kW4.0
• Heating – kcal/h3,400Heating – Btu/h13,600

POWER INPUT

• Power Input(H / M / L) – W18 / 14 / 11

CASING

• CasingGalvanized Steel Plate

DIMENSIONS(W H D)

• Net – 830 225 600Net – inch32-11/16 8-27/32 23-5/8
• Shipping – 1,055 290 682Shipping – inch41-17/32 11-13/32 26-27/32

COIL

• Rows Columns FPI2 9 17Face Area – m0.32

FAN

• TypeCross Flow FanMotor Output Number – W No.37 1
• Running Current – A0.20Air Flow Rate(H / M / L) – m/min11.1 / 10.3 / 9.1
• Air Flow Rate(H / M / L) – ft/min392 / 364/ 321DriveDirect
• Motor typeBLDCMotor Full Load Ampere – A0.67

TEMPERATURE CONTROL

• Temperature ControlMicroprocessor, Thermostat for cooling and heating

SOUND ABSORBING THERMAL INSULATION MATERIAL

• Sound Absorbing Thermal Insulation MaterialFoamed polystyrene

SAFETY DEVICE

• Safety DeviceFuse

PIPE CONNECTIONS

• Liquid Side – (inch) 6.35 (1/4)Gas Side – (inch) 12.7 (1/2)
• Drain Pipe(Internal Dia.) – (inch) 25 (1)

WEIGHT

• Net – kg(lbs)18.1 (39.9)Shipping – kg(lbs)22.5 (49.6)

SOUND PRESSURE LEVELS

• H / M / L – dB(A)34 / 32 / 29

SOUND POWER LEVELS

• H / M / L – dB(A)43 / 41 / 39

POWER SUPPLY

• Power Supply – , V, Hz1, 220-240, 50
  1, 220, 60

REFRIGERANT CONTROL

• Refrigerant ControlEEV

TRANSMISSION CABLE

• Transmission Cable – Cores1.0-1.5 2C

DECORATION PANEL(ACCESSORY)

• Model NamePT-USCExterior ColorMorning fog
• Dimensions(W H D) Net – 1,100 28 690Dimensions(W H D) Shipping – 1,140 100 754
• Net Weight – kg(lbs)4.65 (10.3)Shipping Weight – kg(lbs)6.50 (14.3)
